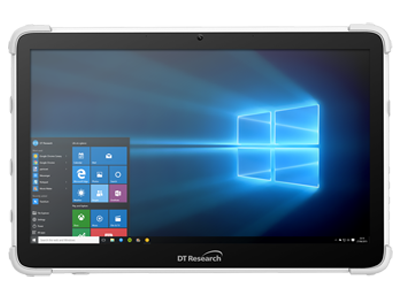

The NFSR17M is designed to meet the highest standards of quality and hygiene, certified to UL60601-1, the international standard for electrical medical equipment. Its bacteria-repellent outer casing ensures easy cleaning and promotes a hygienic environment. This tablet PC serves as a reliable platform for various programs and applications, including Eye Gaze technology.
With its large, high-resolution 17-inch Capacitive Touch display and lightweight design, the NFSR17M is ideal for industrial tasks such as drawings and assembly. The display also supports an active pen for enhanced precision.
Powered by Intel® 11th generation processors, available in Pentium® Gold, Core™ i5, or Core™ i7 variants, the NFSR17M operates on Windows® 10 IoT or Ubuntu Linux, providing versatility for different use cases.
The device features a retractable kickstand and VESA 75 x 75 mounting on the back for flexible positioning. HotSwap technology comes standard, enabling seamless battery replacements to ensure continuous, reliable operation.
Processor
Intel® Core™ i5-1335U, 10-Core, up to 4.6 GHz
Intel® Core™ i7-1355U, 10-Core, up to 5.0 GHz
Memory
8GB to 32GB
Storage
512GB to 1TB Flash
Operating System
Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu
Display
17” LED-Backlit LCD touchscreen
Display Resolution1980 x 1080 (Optional: 3840 x 2160)
Weight
4.41 lbs/2 kg
Dimensions
(H x W x D)
16.9 x 11.1 x 1.06 in/430 x 282 x 27 mm
Ports / Connectors
USB Port x 6 USB Type-A (3 at the Right Side, 1 at the Left Side, and 2 at the Bottom); 1 x latest USB/charging
Headphone Jack x 1 (3.5 mm)
Ethernet Port x1
Smart Card Reader x1
Buttons: 1 x Power Button, 3 x Programmable Buttons
Communications
WLAN / WiFi 802.11ax, 2.4/5/6 GHz Dual Band
Bluetooth 6.0
Options
CAC Card Reader: Full-Slot (Reads ISO 7816 T=0, T=1); 1.8/3/5V Smart Card
Back Service Door: An Additional Set of I/O Ports, Including 3 x USB Type-A, 1 x COM Port, 1 x DC-In Jack, and 1 DC-Out Jack
3-Slot Battery Holster
The Battery Holster is designed to be a charging case as well as a portable power bank while three fully-charged DR202 batteries (optional) are stored inside.
The package includes one Battery Holster which features three battery slots with lockable gate as well as three DC-out connectors, one holder and three cables.
CAUTION: This Battery Holster must only be used with the specific DR202 battery,
Desktop Charging Cradle
Digital Pen
Active pen based on capacitive coupled sensing technology for users to write, draw or mark-up Adobe PDF files and Microsoft documents. With its functional buttons, the Digital Pen also performs as a mouse and enables to switch seamlessly among touch, pen, mouse and keyboard, that helps simplify daily works and provides excellent user experience to increase work efficiency
Dimensions: 9.7mm x 140.7mm;
Weight: <25g; Battery: 1 AAAA
Battery Pack
Hot-swappable, 43W, 60W or 90W.
AC/DC Power Adapter with Power Cord
Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle.
(Choice of North America, UK or EU power cord).
6 Bay Battery Pack Charger
The charger is designed with 6 charging slots or bays. Each bay will charge one battery pack, allowing charging for up to 6 batteries simultaneously.
A battery may be inserted into any bay, and several batteries may be inserted in any order. Charging will begin when the first battery is inserted into a bay. The charger will automatically detect the insertion of the battery and turn on the internal fan to cool the charger and charging will start.
