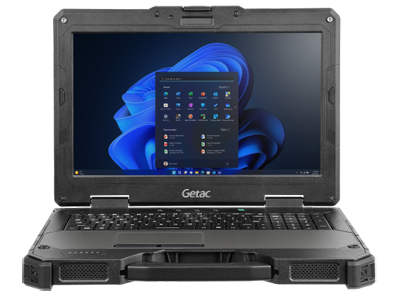

X600: Unmatched Power and Reliability for Demanding Applications
The X600 sets a new standard for performance and versatility, equipped with Intel 11th Gen i5/i7/i9 processors (up to 8 cores) and optional NVIDIA® Quadro® RTX3000 discrete graphics control. With up to 128GB DDR4 RAM, the X600 handles even the most intense tasks with ease and efficiency.
Its dual-fan design ensures optimal cooling, keeping every component running smoothly during heavy workloads. Data storage is incredibly expandable, supporting up to 6TB across three user-removable PCIe SSDs, offering robust capacity and flexibility for critical operations.
Built to excel in the toughest conditions, the X600 combines cutting-edge computing power with exceptional durability, making it the perfect choice for professionals who demand reliability and peak performance.
Processor
Intel® Core™ i5-11500H vPro®-processor Max 4,6 GHz med Intel® Turbo Boost - 12 MB Intel® Smart Cache
Platform Options:
Intel® Core™ i7-11850H vPro®-processor Max 4,8 GHz med Intel® Turbo Boost - 24 MB Intel® Smart Cache
Intel® Core™ i9-11950H vPro®-processor Max 4,9 GHz med Intel® Turbo Boost - 24 MB Intel® Smart Cache
Memory
16GB / 32GB / 64GB / 128GB DDR4
Storage
1TB / 2TB PCIe SSD
Operating System
Windows 11 Pro
Display
15.6-inch TFT LCD FHD (1920 x 1080) 1,000 nits LumiBond® Sunlight-readable
Optional: Capacitive multi-touch display
Rugged properties
MIL-STD-810H certified
IP66 certified
MIL-STD-461G certified
Vibration and drop resistant from a height of 0.9 m
Weight
8,145kg
Dimensions
412 x 322 x 108,8 mm
Port / connections
FHD Webcam x 1
Thunderbolt™ 4 Type-C x 1
USB 3.2 Gen 2 Type-A x 4
LAN (RJ-45) x 2
Audio input/output combination x 1
DC Input x 1
HDMI 2.0x1
DisplayPort x 1
Serial connector (9-pin; D-Sub) x 2
External VGA (15-pin; D-Sub) x1 or 3. serial
Port (9-pin; D-Sub) x 1
Optional: SIM card slot x 1 (Mini SIM, 2FF)
Communications
2.5 GBASE-T Ethernet
Intel® Wi-Fi 6E AX210, 802.11ax
Bluetooth (v5.2)
Optional: Dedicated GPS
Optional: 4G LTE mobile broadband with
integrated GPS
External Dual Bay Battery Charger
Specifications:
AC Input: 100V~240V
DC Output: 13.05V, 2.4A
Max.Number of charge bays: 2
BayDimensions: L 160 x W 180 x H 72.5mm
Weight: 1.2kg
Capacitive stylus pen and tether
This hard-tip capacitive pen is lightweight and easy to control, allowing for smooth and comfortable interaction with the touchscreen without having to worry about scratching the screen or leaving fingerprints on it. The stylus comes with a detachable tether to keep the stylus attached to the device, so it won't get lost or lost.
Specifications:
Pen dimensions: 111mm; Ø9mm
Tip size: 3.8mm; Ø3.5 mm
Wire length: 304 mm
230W DC-DC Vehicle Adapter
The 230W vehicle adapter is configured with bare cables, providing easy hardwired installation to your vehicle
Specifications:
Input voltage: 11VDC~16VDC for 12V systems and 22VDC~36VDC for 24V systems
Output Voltage: 19VDC
Output Current: 12.1A Max.
Adapter Dimensions : L 280 x W 75 x H 49mm
Weight: 1.7kg ±170g
Input cable length: 1900mm
Output Cable Length: 1530mm
Office Dock with AC adapter
The Getac office dock provides multiple I/O ports to connect essential peripherals in the office environment. Through the integrated Ethernet, RS232 or USB connections, users can quickly collect and synchronize field data with central offices for real-time reporting and analysis.
Specifications:
Docking Connector: POGO* with 90W AC Adapter
I/O ports:
DC in Jack x 1
Audio Output x 1
Microphone x1
USB 2.0 x 3
USB 3.0 x1
LAN x 1
HDMI x 1
VGA x 1
Serial Port x 2
Kensington Lock x 1
Dimensions : L 301.67 x W 153.82 x H 40.42 mm
Weight: 825g
230W AC-adapter
Denna adapter är utformad för att driva notebook-datorn och ladda dess interna batteri från en växelströmskälla. En landsspecifik nätsladd medföljer adaptern för att passa det lokala eluttaget i ditt angivna land.
Ingångsspänning: 100V-240V AC
Utspänning: 19,5VDC
Utström : Max 11,79A, 230W
Adaptermått och vikt : L 177 x B 86 x H 32,2 mm, 650 g
Adapterutgångskabellängd: 1500mm
Adapter Strömförsörjningssladd Längd: 1800mm
230W MIL-STD-461 AC Adapter
The AC adapter on the 230W MIL-STD-461 has passed the military standard and test specification to ensure that the adapter's conduction emission (CE), conduction sensitivity (CS), radiated emissions (RE), and radiation sensitivity (RS) from the adapter can meet requirements for the control of electromagnetic interference.
Specifications:
Input Voltage: 100V-240V AC
Output Voltage: 19.5VDC
Output Current: Max 11.8A (230W)
Adapter dimensions and weight: L 256 x W 98 x H 57 mm, 1.9 kg
Adapter output cable length: 1530 mm
Adapter Power Supply Cord Length: 1800mm
The 230W MIL-STD-461 AC adapter is designed to charge only one device at a time.
Spare battery
Specifications:
Battery Type: Lithium-Ion
Cell designation: 3S2P
Output voltage: 10.8V
Capacity: 6900mAh
Battery dimensions: L 142.1 x W 72 x H 20.1 mm
Weight : 350 g
